السؤال
Transcribed Image Text:

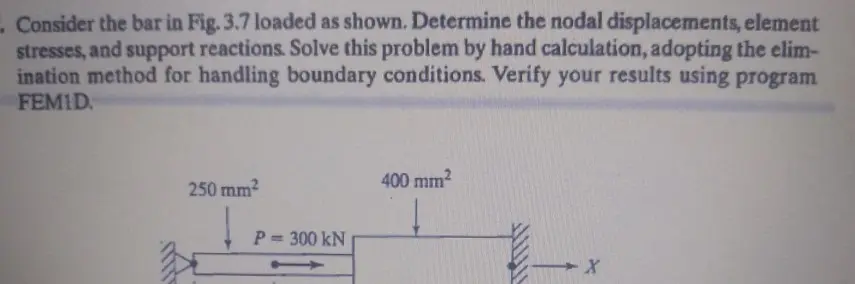

. Consider the bar in Fig. 3.7 loaded as shown. Determine the nodal displacements, element
stresses, and support reactions. Solve this problem by hand calculation, adopting the elim-
ination method for handling boundary conditions. Verify your results using program
FEMID
250 mm²
P = 300 kN
400 mm²
X
