السؤال
Transcribed Image Text:

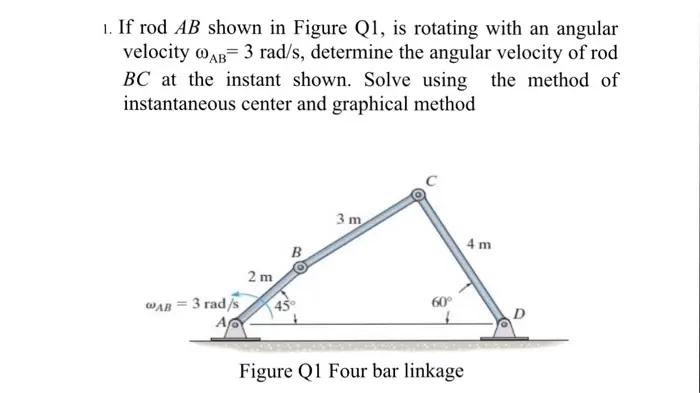

1. If rod AB shown in Figure Q1, is rotating with an angular
velocity @AB 3 rad/s, determine the angular velocity of rod
BC at the instant shown. Solve using the method of
instantaneous center and graphical method
2 m
WAB=
= 3 rad/s
B
45
3 m
60°
4 m
Figure Q1 Four bar linkage
