السؤال
Transcribed Image Text:

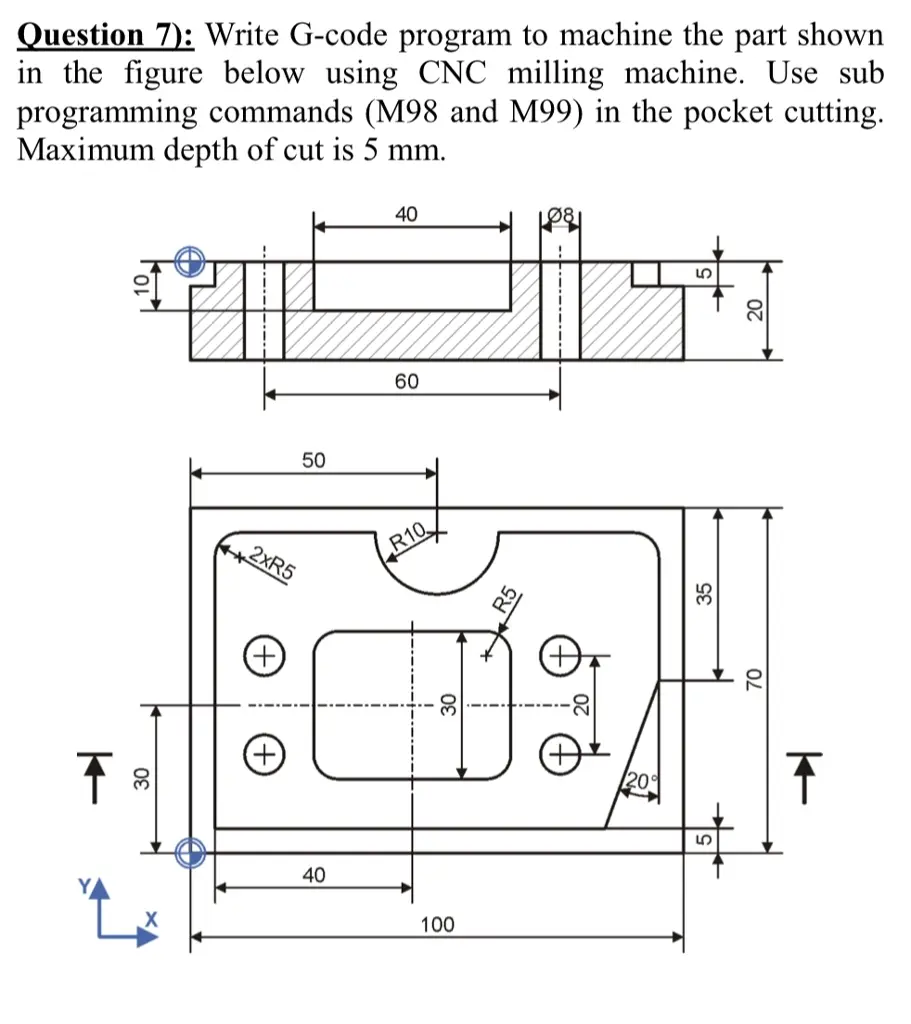

Question 7): Write G-code program to machine the part shown
in the figure below using CNC milling machine. Use sub
programming commands (M98 and M99) in the pocket cutting.
Maximum depth of cut is 5 mm.
T
30
2xR5
+
+
40
40
50
60
R10
100
40
5
5
70
35
20
F
