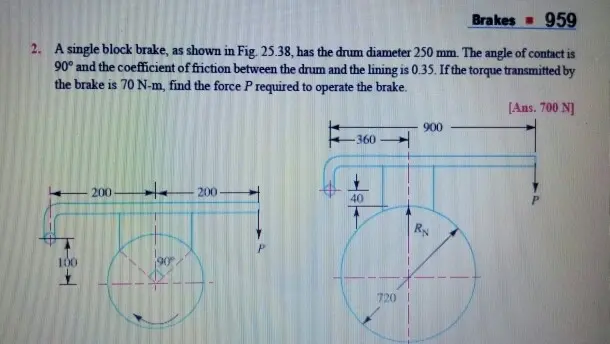

Brakes 959 2. A single block brake, as shown in Fig. 25.38, has the drum diameter 250 mm. The angle of contact is 90° and the coefficient of friction between the drum and the lining is 0.35. If the torque transmitted by the brake is 70 N-m, find the force P required to operate the brake. [Ans. 700 N] 100 900 360 200- 200 40 RN 90 720
