السؤال

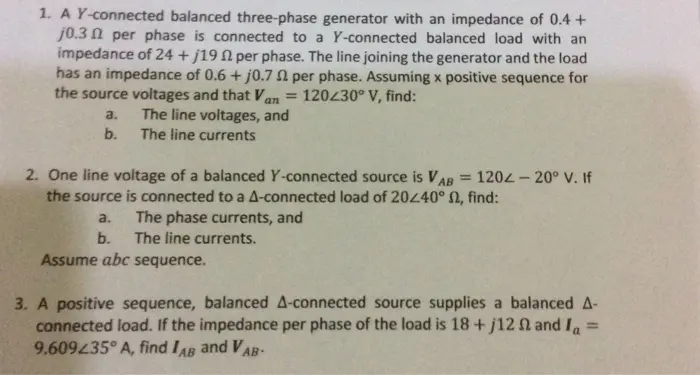

Transcribed Image Text:
1. A Y-connected balanced three-phase generator with an impedance of 0.4 +
j0.30 per phase is connected to a Y-connected balanced load with an
impedance of 24 +/19 per phase. The line joining the generator and the load
has an impedance of 0.6 + j0.7 2 per phase. Assuming x positive sequence for
the source voltages and that Van 120230° V, find:
a. The line voltages, and
b.
The line currents
2. One line voltage of a balanced Y-connected source is VAB = 120-20° V. If
the source is connected to a A-connected load of 20240° 2, find:
a.
b.
The phase currents, and
The line currents.
Assume abc sequence.
3. A positive sequence, balanced A-connected source supplies a balanced A-
connected load. If the impedance per phase of the load is 18+ j12 and I₁ =
9.609235° A, find IAB and VAB-
