السؤال
Transcribed Image Text:

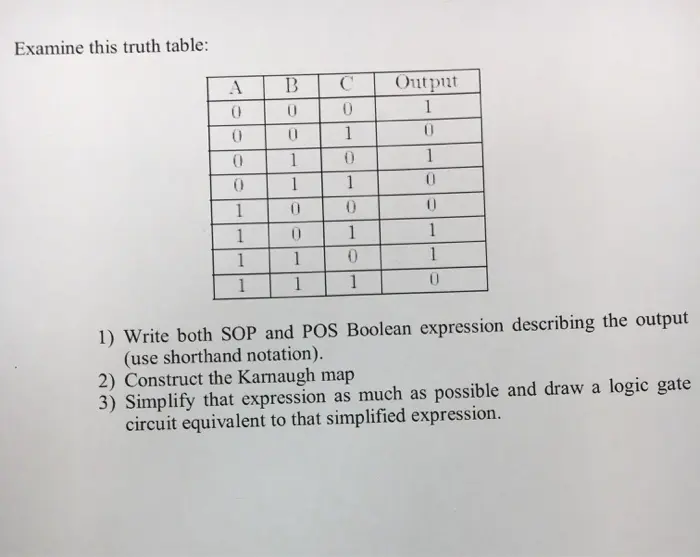

Examine this truth table:
A
B
C
Output
0
0
0
1
0
0
1
0
0
1
0
1
0
1
1
0
1
0
0
0
1
0
1
1
1
1
0
1
1
1
1
0
1) Write both SOP and POS Boolean expression describing the output
(use shorthand notation).
2) Construct the Karnaugh map
3) Simplify that expression as much as possible and draw a logic gate
circuit equivalent to that simplified expression.
