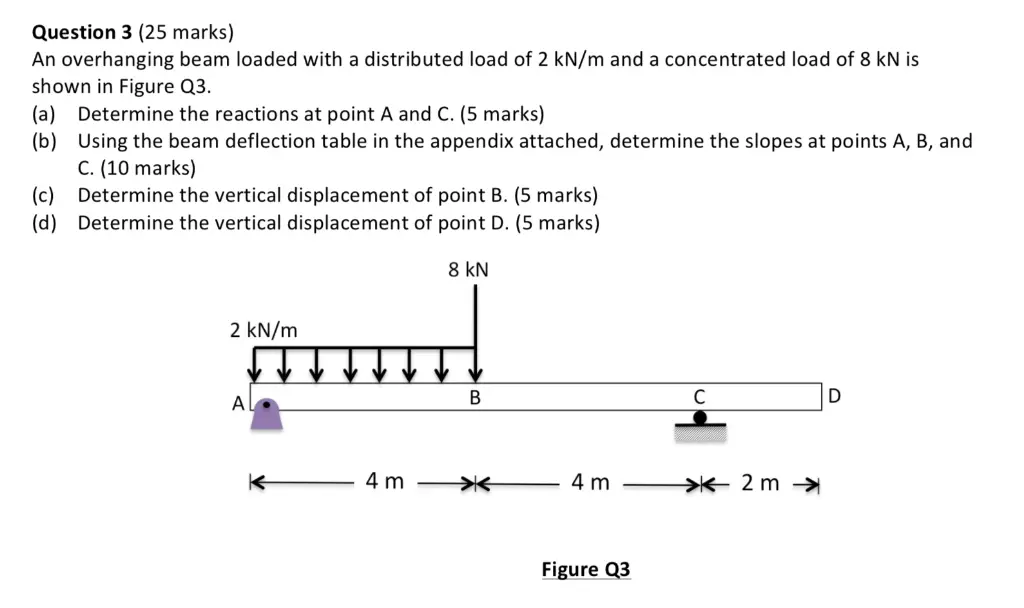

Question 3 (25 marks) An overhanging beam loaded with a distributed load of 2 kN/m and a concentrated load of 8 kN is shown in Figure Q3. (a) Determine the reactions at point A and C. (5 marks) (b) Using the beam deflection table in the appendix attached, determine the slopes at points A, B, and C. (10 marks) (c) Determine the vertical displacement of point B. (5 marks) (d) Determine the vertical displacement of point D. (5 marks) 2 kN/m AL K 8 kN B C D 4 m >< 4 m 2 m → Figure Q3
