السؤال
Transcribed Image Text:

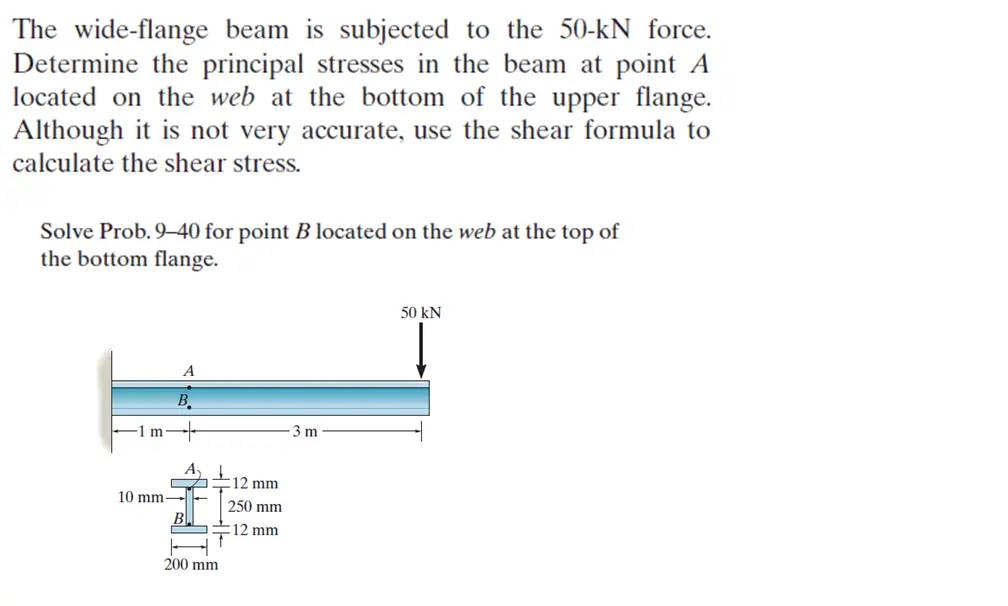

The wide-flange beam is subjected to the 50-kN force.
Determine the principal stresses in the beam at point A
located on the web at the bottom of the upper flange.
Although it is not very accurate, use the shear formula to
calculate the shear stress.
Solve Prob. 9-40 for point B located on the web at the top of
the bottom flange.
A
1 m
A₁
12 mm
10 mm-
250 mm
200 mm
12 mm
3 m
50 kN
