السؤال

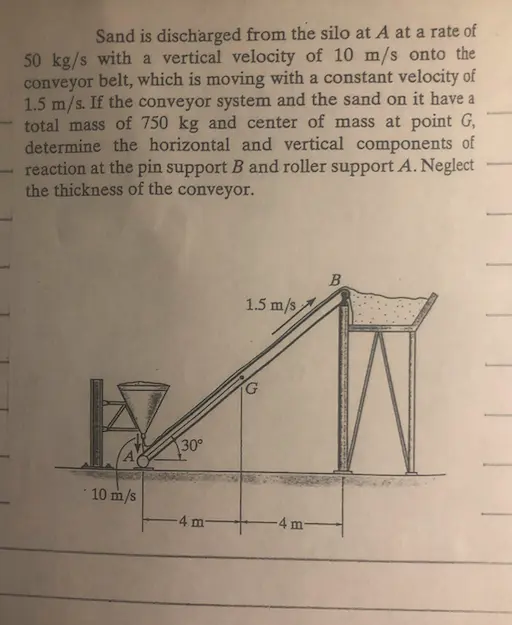

Transcribed Image Text:
Sand is discharged from the silo at A at a rate of
50 kg/s with a vertical velocity of 10 m/s onto the
conveyor belt, which is moving with a constant velocity of
1.5 m/s. If the conveyor system and the sand on it have a
total mass of 750 kg and center of mass at point G,
determine the horizontal and vertical components of
reaction at the pin support B and roller support A. Neglect
the thickness of the conveyor.
1.5 m/s
B
W
10 m/s
30°
-4 m-
G
-4 m-
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
