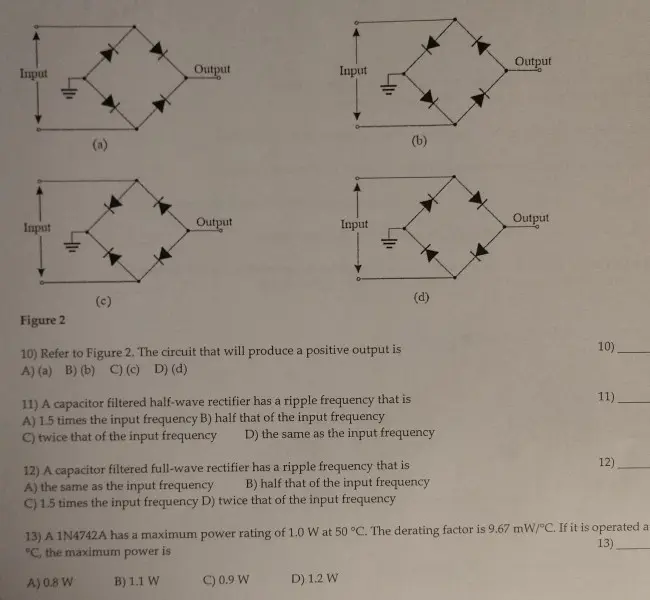

Input 41 Input (a) 41 (c) Figure 2 Output Input 411 Output Input (b) (d) Output Output 10) Refer to Figure 2. The circuit that will produce a positive output is A) (a) B) (b) C) (c) D) (d) 11) A capacitor filtered half-wave rectifier has a ripple frequency that is A) 1.5 times the input frequency B) half that of the input frequency C) twice that of the input frequency D) the same as the input frequency 12) A capacitor filtered full-wave rectifier has a ripple frequency that is A) the same as the input frequency B) half that of the input frequency C) 1.5 times the input frequency D) twice that of the input frequency 10) 11). 12) 13) A 1N4742A has a maximum power rating of 1.0 W at 50 °C. The derating factor is 9.67 mW/°C. If it is operated a °C, the maximum power is 13). A) 0.8 W B) 1.1 W C) 0.9 W D) 1.2 W
