Transcribed Image Text:
Question 2

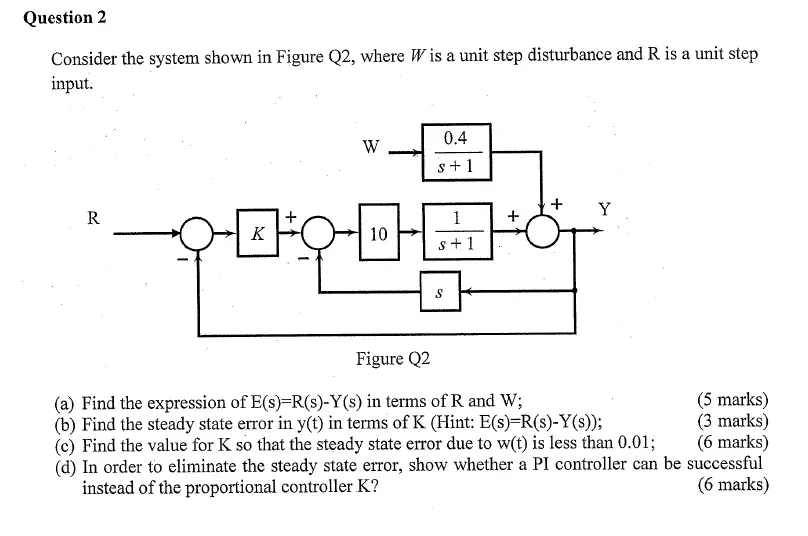

Consider the system shown in Figure Q2, where W is a unit step disturbance and R is a unit step
input.
0.4
W
s+1
+
R
Y
1
+
K
10
s+1
S
Figure Q2
(a) Find the expression of E(s)=R(s)-Y(s) in terms of R and W;
(5 marks)
(b) Find the steady state error in y(t) in terms of K (Hint: E(s)=R(s)-Y(s));
(3 marks)
(c) Find the value for K so that the steady state error due to w(t) is less than 0.01;
(6 marks)
(d) In order to eliminate the steady state error, show whether a PI controller can be successful
instead of the proportional controller K?
(6 marks)
