السؤال
Transcribed Image Text:

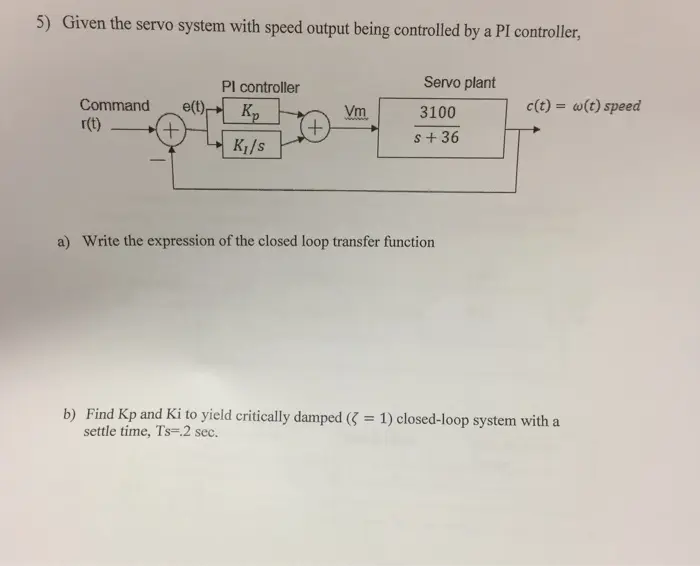

5) Given the servo system with speed output being controlled by a PI controller,
Pl controller
Servo plant
Command
e(t)
c(t) = w(t) speed
Kp
Vm
3100
www
r(t)
(+
(+)
S+36
K₁/s
a) Write the expression of the closed loop transfer function
b) Find Kp and Ki to yield critically damped (31) closed-loop system with a
settle time, Ts=.2 sec.
