السؤال
Transcribed Image Text:

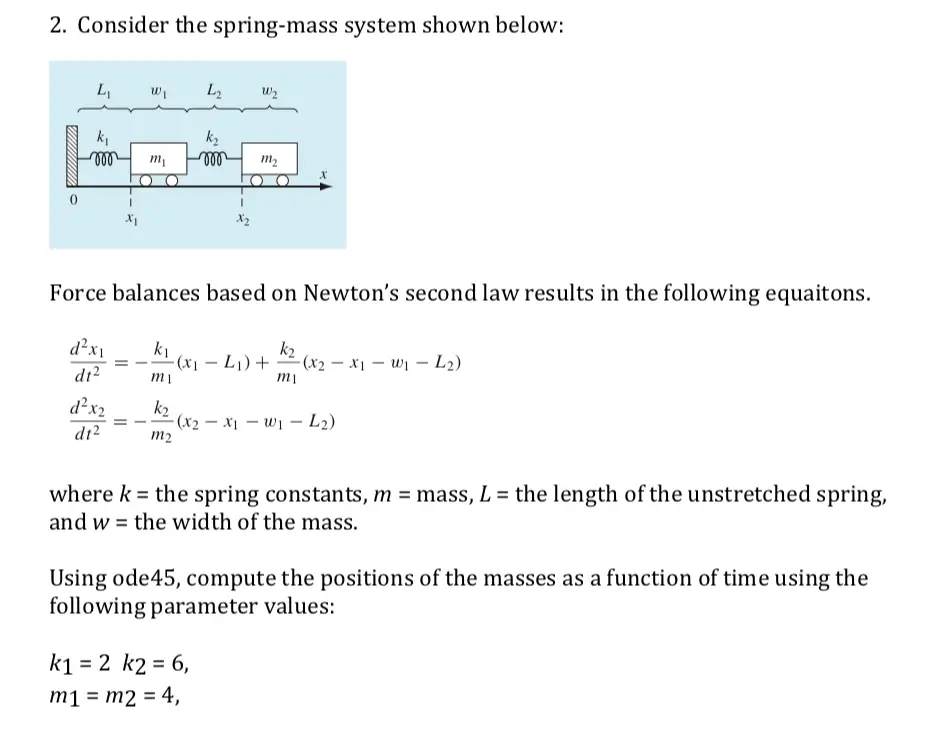

2. Consider the spring-mass system shown below:
L₁
L₂
k₁
k₂
m₁
-mon
m₂
Χ
Force balances based on Newton's second law results in the following equaitons.
-(x1 - L₁) +
k2
d²x₁
dt²
k₁
(x2x1 w₁ L2)
mi
mi
d²x2
dt2
k2
=
(x2x1w1-L2)
m2
where k = the spring constants, m = mass, L = the length of the unstretched spring,
and w the width of the mass.
Using ode45, compute the positions of the masses as a function of time using the
following parameter values:
k1 = 2 k2= 6,
m1 = m2 = 4,
W1=5
W2 =5,
and L1 L2 =1.
Set the initial conditions as x₁ =L₁+1 and x2 =L1 +W1 +2 +2. Initial velocities =0.
Perform the simulation from t = 0 to 20.
Using the subplot command, construct time-series plots of both the displacements
and the velocities. i.e. plot both displacements on one set of axes and both velocities
on another.
In addition, produce a plot of x1 versus x2.
Clearly label your plots and include legends. Paste your script and the plots into a
