السؤال

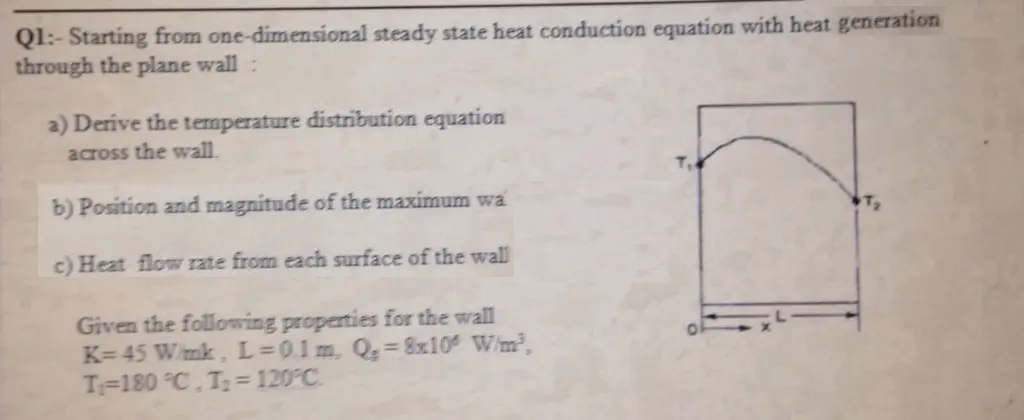

Transcribed Image Text:
Q1:- Starting from one-dimensional steady state heat conduction equation with heat generation
through the plane wall:
a) Derive the temperature distribution equation
across the wall.
b) Position and magnitude of the maximum wa
c) Heat flow rate from each surface of the wall
Given the following properties for the wall
K=45 W/mk, L=0.1 m, Q, 8x10 W/m³,
T=180 °C, T=120°C.
