السؤال

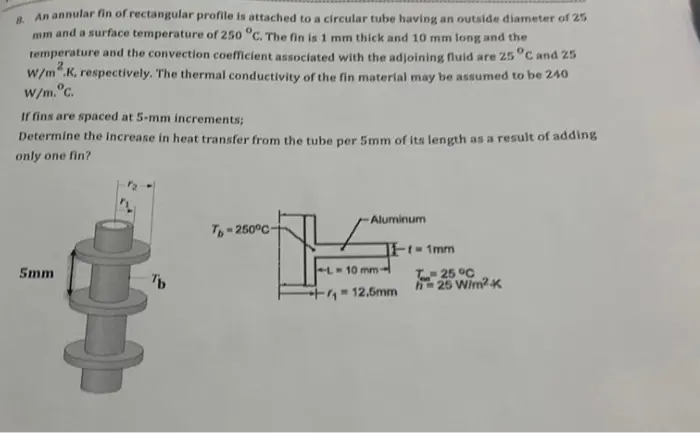

Transcribed Image Text:
8. An annular fin of rectangular profile is attached to a circular tube having an outside diameter of 25
mm and a surface temperature of 250 °C. The fin is 1 mm thick and 10 mm long and the
temperature and the convection coefficient associated with the adjoining fluid are 25 °C and 25
W/m2.K, respectively. The thermal conductivity of the fin material may be assumed to be 240
W/m.ºC.
If fins are spaced at 5-mm increments;
Determine the increase in heat transfer from the tube per 5mm of its length as a result of adding
only one fin?
5mm
Ть
T-250°C-
Aluminum
t=1mm
L-10 mm-
1-12.5mm
T-25 °C
h25 W/m²K
