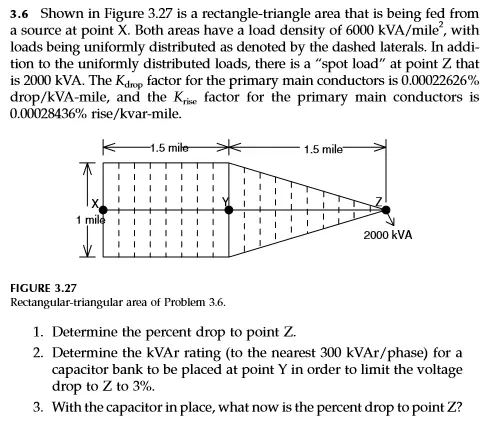

3.6 Shown in Figure 3.27 is a rectangle-triangle area that is being fed from a source at point X. Both areas have a load density of 6000 kVA/mile, with loads being uniformly distributed as denoted by the dashed laterals. In addi- tion to the uniformly distributed loads, there is a "spot load" at point Z that is 2000 kVA. The Kdrop factor for the primary main conductors is 0.00022626% drop/KVA-mile, and the Krise factor for the primary main conductors is 0.00028436% rise/kvar-mile. 1 mile 1.5 mile 1.5 mile 2000 kVA FIGURE 3.27 Rectangular-triangular area of Problem 3.6. 1. Determine the percent drop to point Z. 2. Determine the KVAr rating (to the nearest 300 kVAr/phase) for a capacitor bank to be placed at point Y in order to limit the voltage drop to Z to 3%. 3. With the capacitor in place, what now is the percent drop to point Z?
