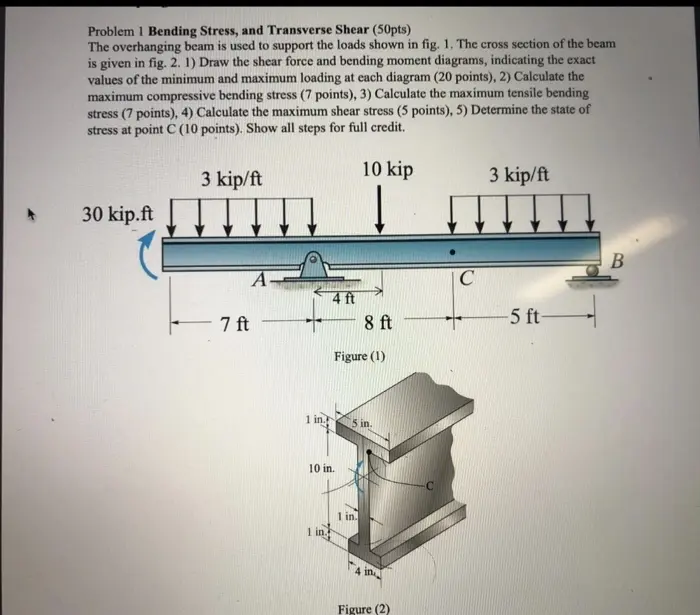

Problem 1 Bending Stress, and Transverse Shear (50pts) The overhanging beam is used to support the loads shown in fig. 1. The cross section of the beam is given in fig. 2. 1) Draw the shear force and bending moment diagrams, indicating the exact values of the minimum and maximum loading at each diagram (20 points), 2) Calculate the maximum compressive bending stress (7 points), 3) Calculate the maximum tensile bending stress (7 points), 4) Calculate the maximum shear stress (5 points), 5) Determine the state of stress at point C (10 points). Show all steps for full credit. 3 kip/ft 10 kip 3 kip/ft 30 kip.ft 7 ft A 4 ft 8 ft Figure (1) 1 in. 10 in. 5 in. 1 in. 4 in Figure (2) B C -5 ft-
