السؤال
Transcribed Image Text:

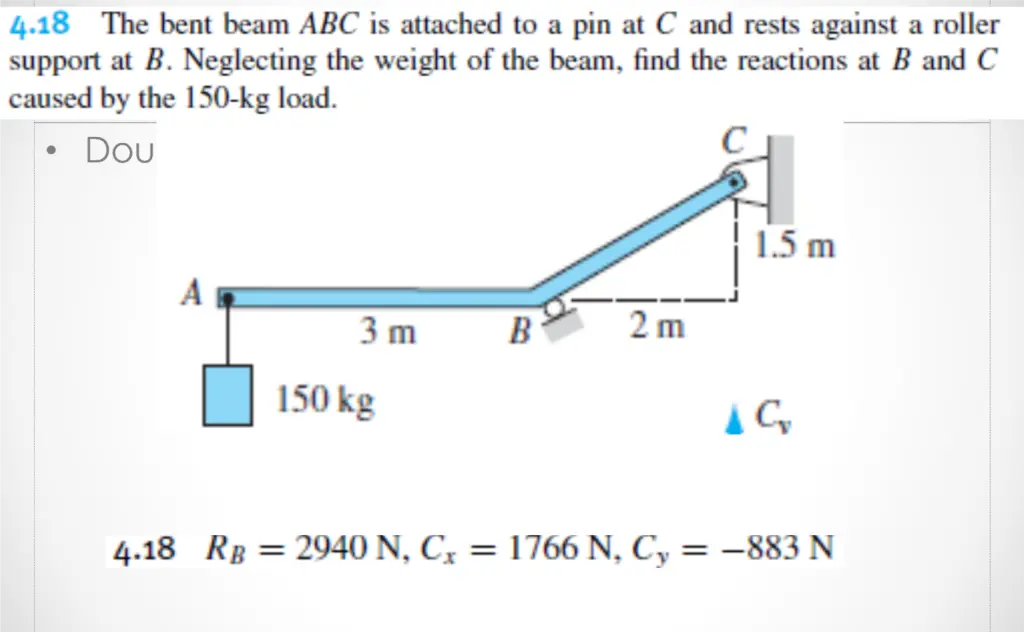

4.18 The bent beam ABC is attached to a pin at C and rests against a roller
support at B. Neglecting the weight of the beam, find the reactions at B and C
caused by the 150-kg load.
⚫ Dou
1.5 m
3 m
B
2 m
▲ C₁₂
150 kg
4.18 RB = 2940 N, Cx = 1766 N, Cy
=-883 N
