السؤال
Transcribed Image Text:

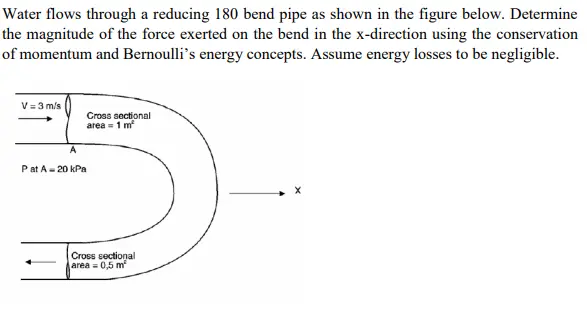

Water flows through a reducing 180 bend pipe as shown in the figure below. Determine
the magnitude of the force exerted on the bend in the x-direction using the conservation
of momentum and Bernoulli's energy concepts. Assume energy losses to be negligible.
V=3 m/s
A
P at A-20 kPa
Cross sectional
area 1 m²
Cross sectional
area = 0,5 m²
