السؤال
Transcribed Image Text:
160 mm
130 mm
B
F
W
P
150 mm
240 mm
400 mm

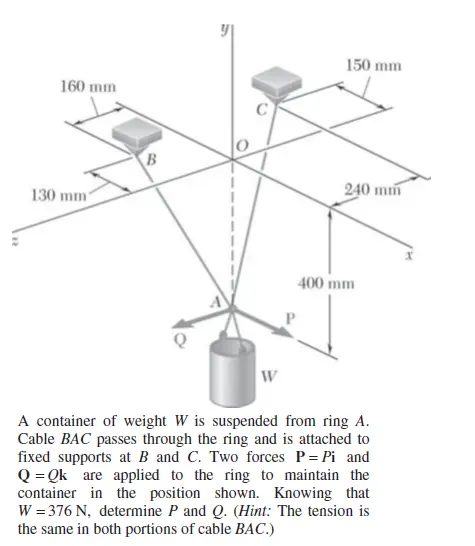

A container of weight W is suspended from ring A.
Cable BAC passes through the ring and is attached to
fixed supports at B and C. Two forces P = Pi and
QQk are applied to the ring to maintain the
container in the position shown. Knowing that
W = 376 N, determine P and Q. (Hint: The tension is
the same in both portions of cable BAC.)
