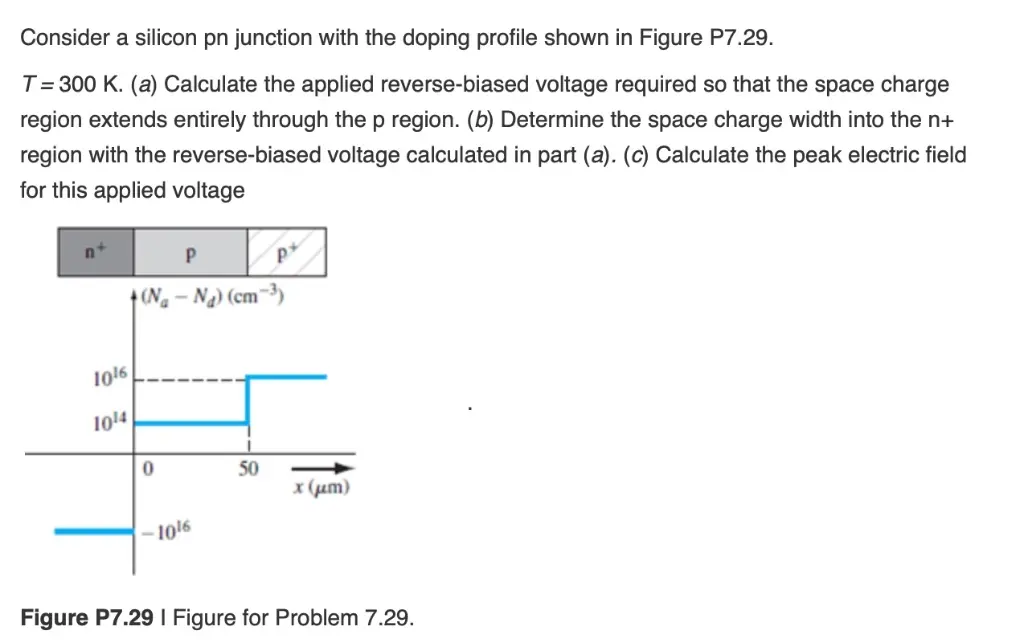

Consider a silicon pn junction with the doping profile shown in Figure P7.29. T 300 K. (a) Calculate the applied reverse-biased voltage required so that the space charge region extends entirely through the p region. (b) Determine the space charge width into the n+ region with the reverse-biased voltage calculated in part (a). (c) Calculate the peak electric field for this applied voltage 1016 1014 P (Na-Na) (cm³) Dx 0 50 x (μm) -1016 Figure P7.29 | Figure for Problem 7.29.
