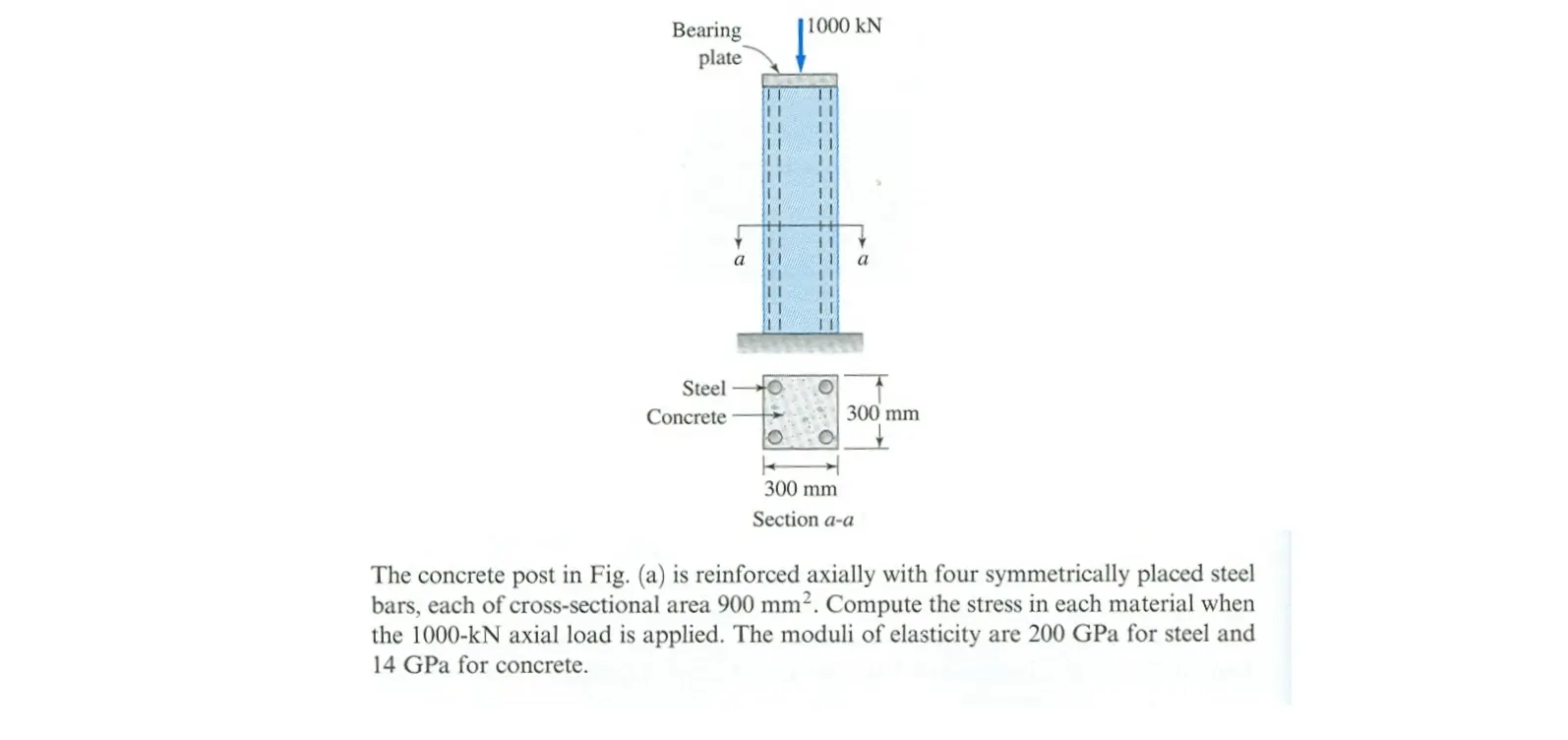

Bearing plate Steel Concrete a 1000 kN 300 mm 300 mm Section a-a The concrete post in Fig. (a) is reinforced axially with four symmetrically placed steel bars, each of cross-sectional area 900 mm². Compute the stress in each material when the 1000-kN axial load is applied. The moduli of elasticity are 200 GPa for steel and 14 GPa for concrete.
