السؤال
Transcribed Image Text:

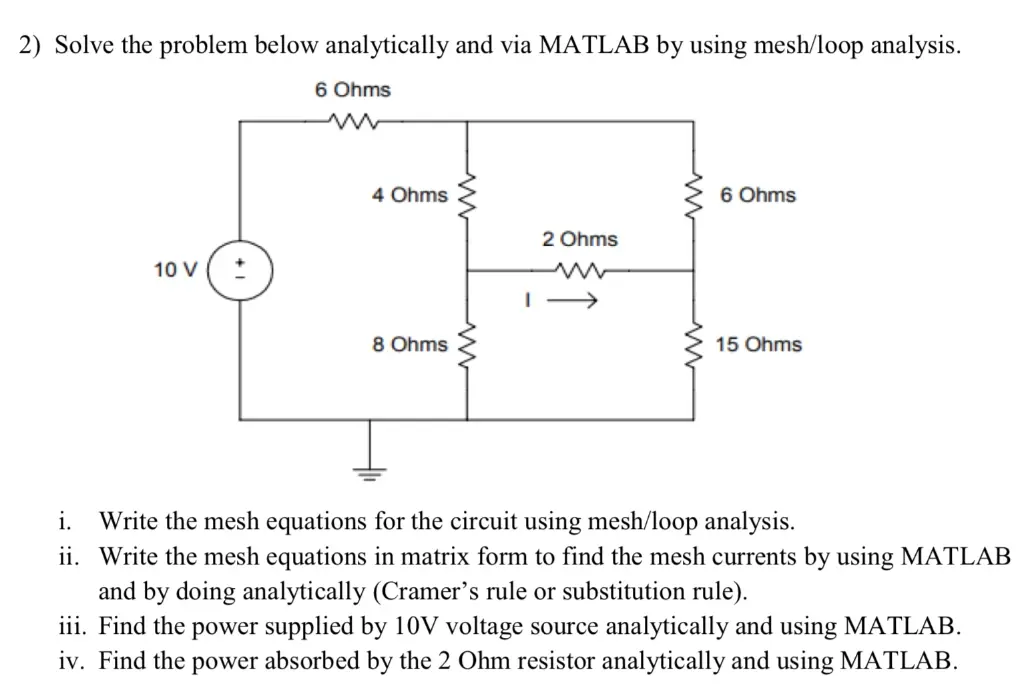

2) Solve the problem below analytically and via MATLAB by using mesh/loop analysis.
6 Ohms
10 V
4 Ohms
6 Ohms
2 Ohms
8 Ohms
ww
w
15 Ohms
Write the mesh equations for the circuit using mesh/loop analysis.
ii. Write the mesh equations in matrix form to find the mesh currents by using MATLAB
and by doing analytically (Cramer's rule or substitution rule).
iii. Find the power supplied by 10V voltage source analytically and using MATLAB.
iv. Find the power absorbed by the 2 Ohm resistor analytically and using MATLAB.
