السؤال
Transcribed Image Text:

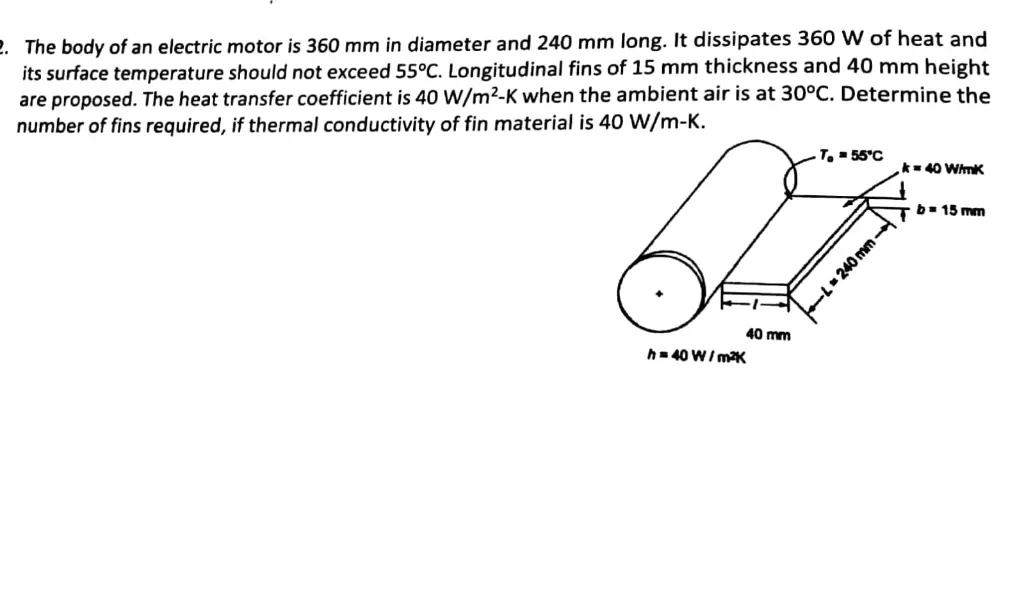

2. The body of an electric motor is 360 mm in diameter and 240 mm long. It dissipates 360 W of heat and
its surface temperature should not exceed 55°C. Longitudinal fins of 15 mm thickness and 40 mm height
are proposed. The heat transfer coefficient is 40 W/m²-K when the ambient air is at 30°C. Determine the
number of fins required, if thermal conductivity of fin material is 40 W/m-K.
h=40 W/m²K
40 mm
T₁ = 55°C
k = 40 W/mK
L-240 mm
b=15 mm
