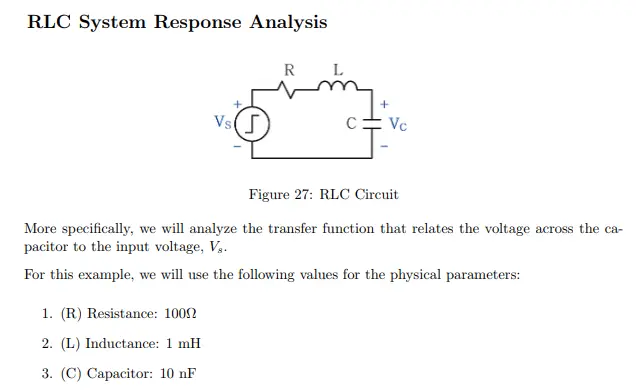

RLC System Response Analysis Vs R L с + Vc Figure 27: RLC Circuit More specifically, we will analyze the transfer function that relates the voltage across the ca- pacitor to the input voltage, V.. For this example, we will use the following values for the physical parameters: 1. (R) Resistance: 1002 2. (L) Inductance: 1 mH 3. (C) Capacitor: 10 nF
