11. For the network of Fig. 8.103:
a. Convert the voltage source to a current source.
b. Reduce the network to a single current source, and
determine the voltage V₁.
c. Using the results of part (b), determine V2.
d. Calculate the current /2.
+12
R₂
www
8 mA
2.2 ΚΩ
+
VR6.8 k
3 mA 12 V

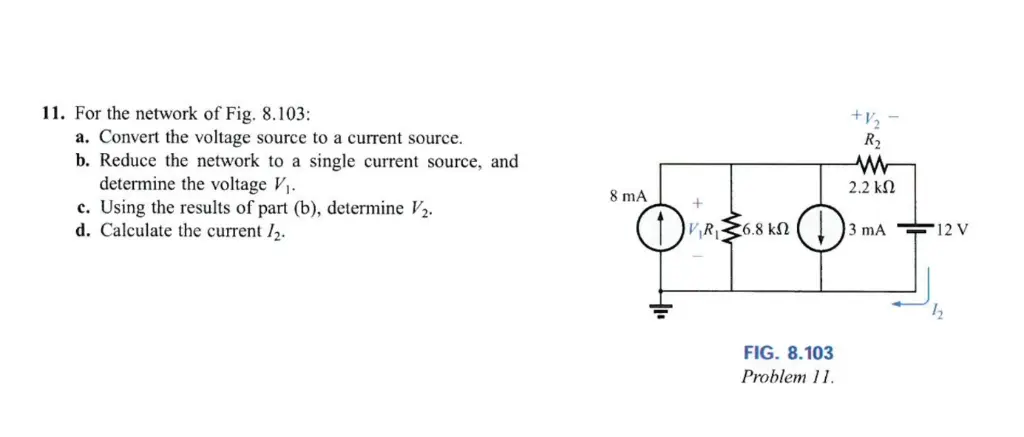

FIG. 8.103
Problem 11.
