السؤال
Transcribed Image Text:

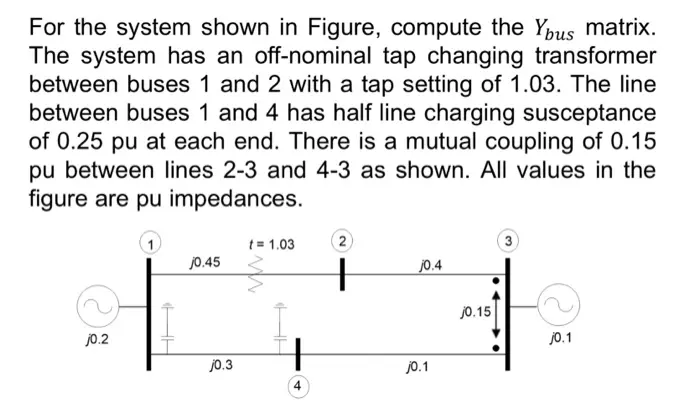

For the system shown in Figure, compute the Ybus matrix.
The system has an off-nominal tap changing transformer
between buses 1 and 2 with a tap setting of 1.03. The line
between buses 1 and 4 has half line charging susceptance
of 0.25 pu at each end. There is a mutual coupling of 0.15
pu between lines 2-3 and 4-3 as shown. All values in the
figure are pu impedances.
t=1.03
2
j0.45
j0.4
j0.15
j0.1
j0.2
j0.3
j0.1
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
