السؤال

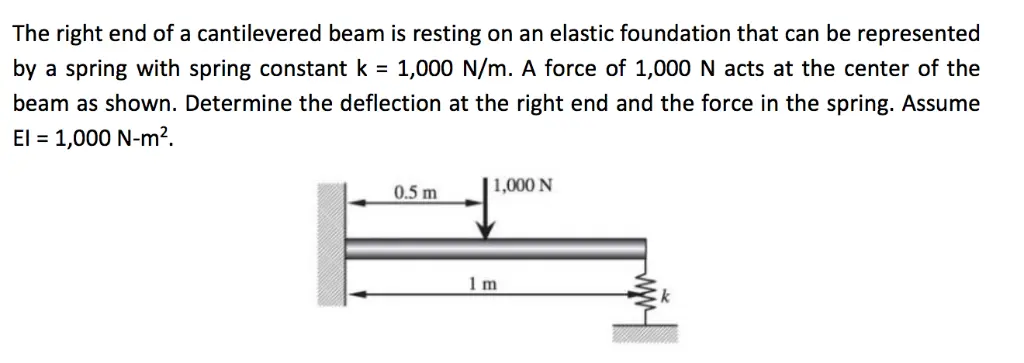

Transcribed Image Text:
The right end of a cantilevered beam is resting on an elastic foundation that can be represented
by a spring with spring constant k = 1,000 N/m. A force of 1,000 N acts at the center of the
beam as shown. Determine the deflection at the right end and the force in the spring. Assume
El = 1,000 N-m².
0.5 m
1,000 N
1 m
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
