السؤال
Transcribed Image Text:

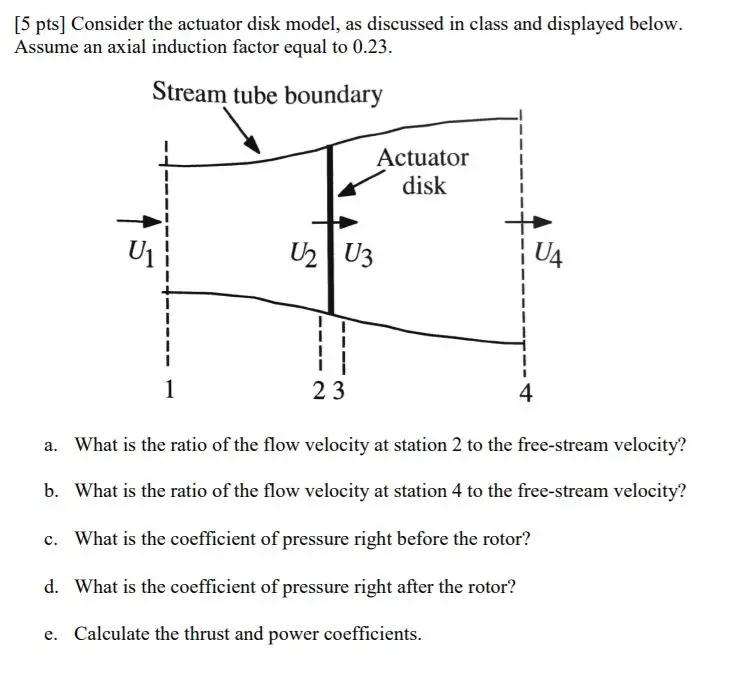

[5 pts] Consider the actuator disk model, as discussed in class and displayed below.
Assume an axial induction factor equal to 0.23.
Stream tube boundary
Actuator
disk
U1
U2
U3
U4
1
23
a. What is the ratio of the flow velocity at station 2 to the free-stream velocity?
b. What is the ratio of the flow velocity at station 4 to the free-stream velocity?
c. What is the coefficient of pressure right before the rotor?
d. What is the coefficient of pressure right after the rotor?
e. Calculate the thrust and power coefficients.
