السؤال
Transcribed Image Text:

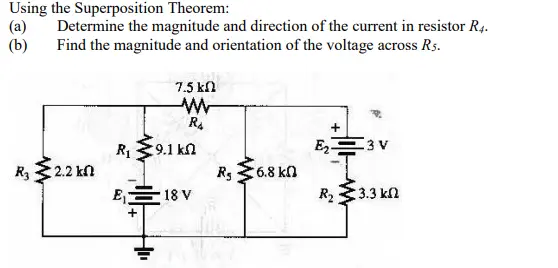

Using the Superposition Theorem:
(a)
Determine the magnitude and direction of the current in resistor R4.
(b) Find the magnitude and orientation of the voltage across R5.
R₁ 2.2 kn
7.5 k
ww
R₁ 9.1 k
E₁18 V
R&
Rs
6.8 k
+
E3V
R₂ 3.3 k
