السؤال
Transcribed Image Text:
t

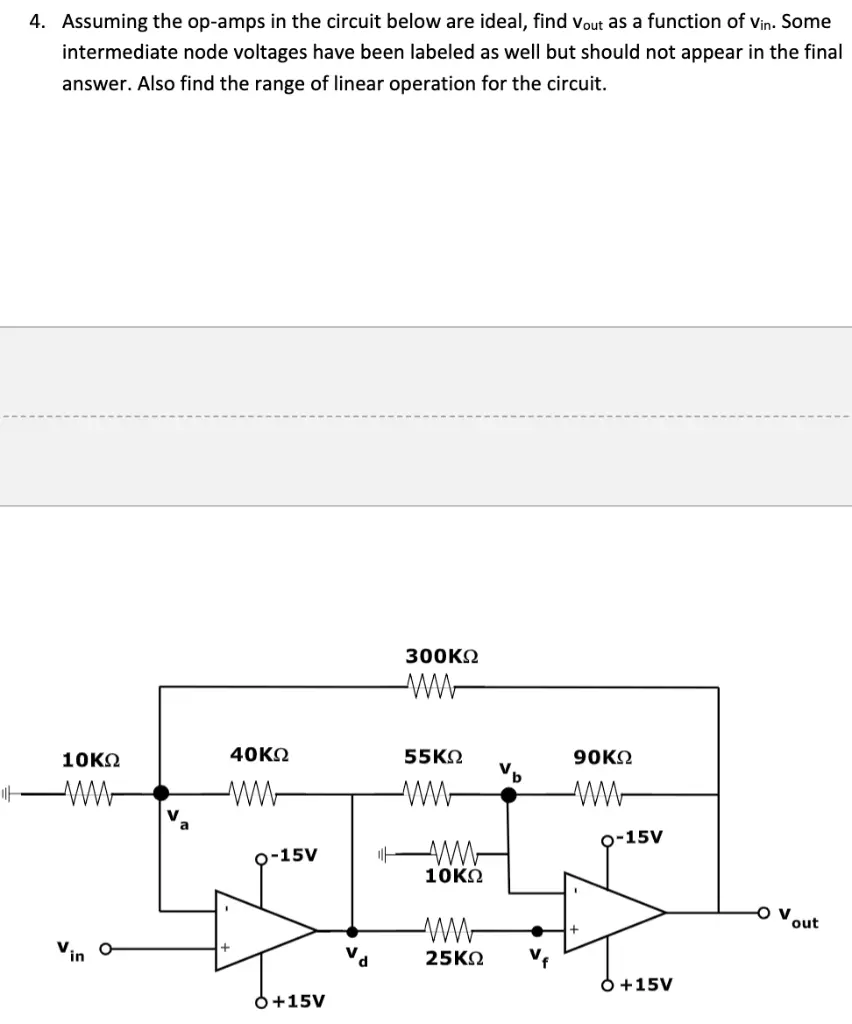

4. Assuming the op-amps in the circuit below are ideal, find out as a function of Vin. Some
intermediate node voltages have been labeled as well but should not appear in the final
answer. Also find the range of linear operation for the circuit.
300ΚΩ
www
10ΚΩ
40ΚΩ
www
www
55 ΚΩ
ww
ww
90ΚΩ
0-15V
0-15V
www
10ΚΩ
ww
25 ΚΩ
V₤
O +15V
O+15V
OV
out
