Transcribed Image Text:

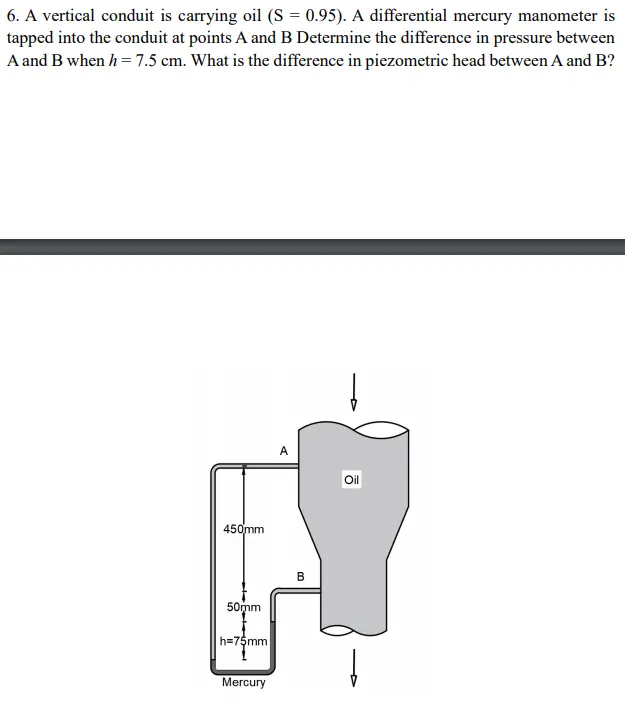

6. A vertical conduit is carrying oil (S = 0.95). A differential mercury manometer is
tapped into the conduit at points A and B Determine the difference in pressure between
A and B when h = 7.5 cm. What is the difference in piezometric head between A and B?
450mm
50mm
h=75mm
Mercury
A
Oil
10
