السؤال
Transcribed Image Text:

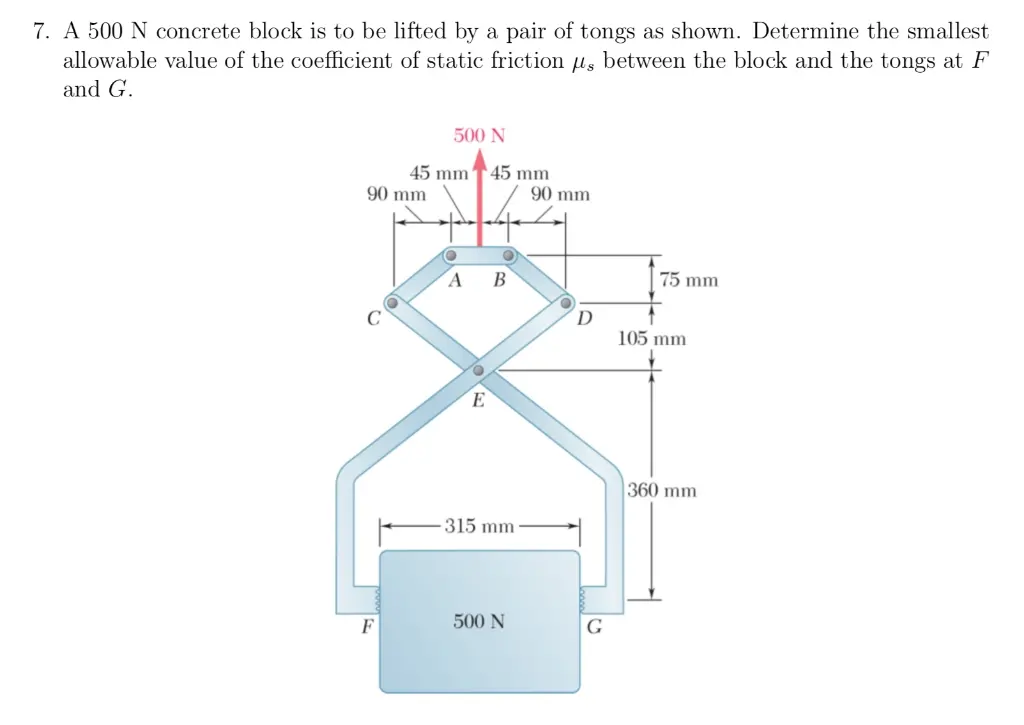

7. A 500 N concrete block is to be lifted by a pair of tongs as shown. Determine the smallest
allowable value of the coefficient of static friction μs between the block and the tongs at F
and G.
500 N
45 mm
45 mm
90 mm
90 mm
C
A B
Ο
315 mm
75 mm
D
105 mm
F
500 N
G
360 mm
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
