السؤال
Transcribed Image Text:

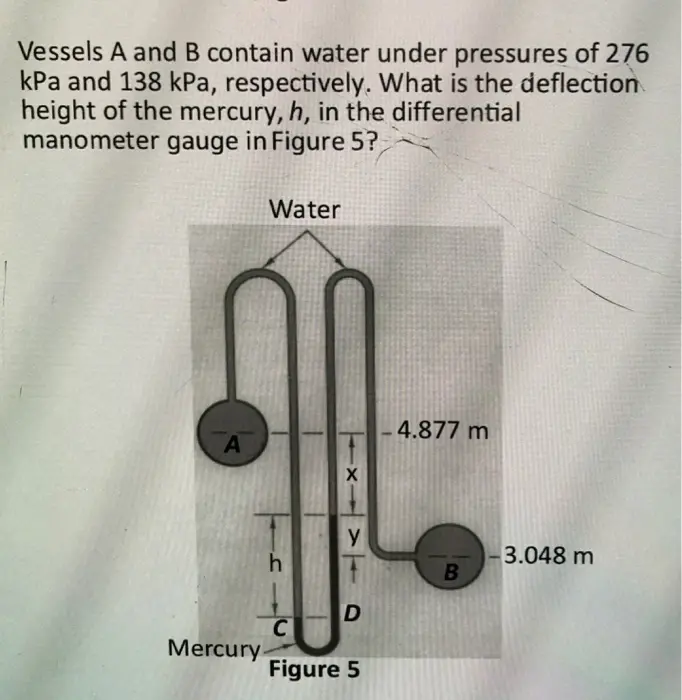

Vessels A and B contain water under pressures of 276
kPa and 138 kPa, respectively. What is the deflection
height of the mercury, h, in the differential
manometer gauge in Figure 5?
Water
A
X
y
4.877 m
3.048 m
h
B
D
C
Mercury.
Figure 5
