السؤال
Transcribed Image Text:

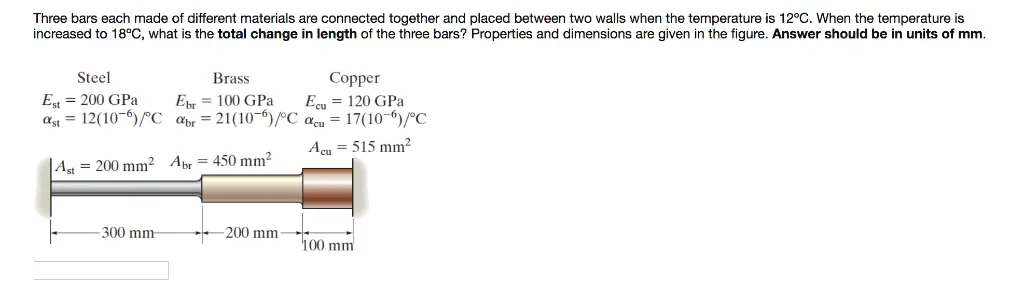

Three bars each made of different materials are connected together and placed between two walls when the temperature is 12°C. When the temperature is
increased to 18°C, what is the total change in length of the three bars? Properties and dimensions are given in the figure. Answer should be in units of mm.
Steel
Brass
Copper
Est = 200 GPa
Ebr = 100 GPa
Ecu = 120 GPa
ast = 12(10-6)/°C abr 21(10-6)/°C acu = 17(10-6)/°C
Acu = 515 mm²
Ast 200 mm² Abr = 450 mm²
-200 mm
300 mm-
100
mm
