السؤال
Transcribed Image Text:

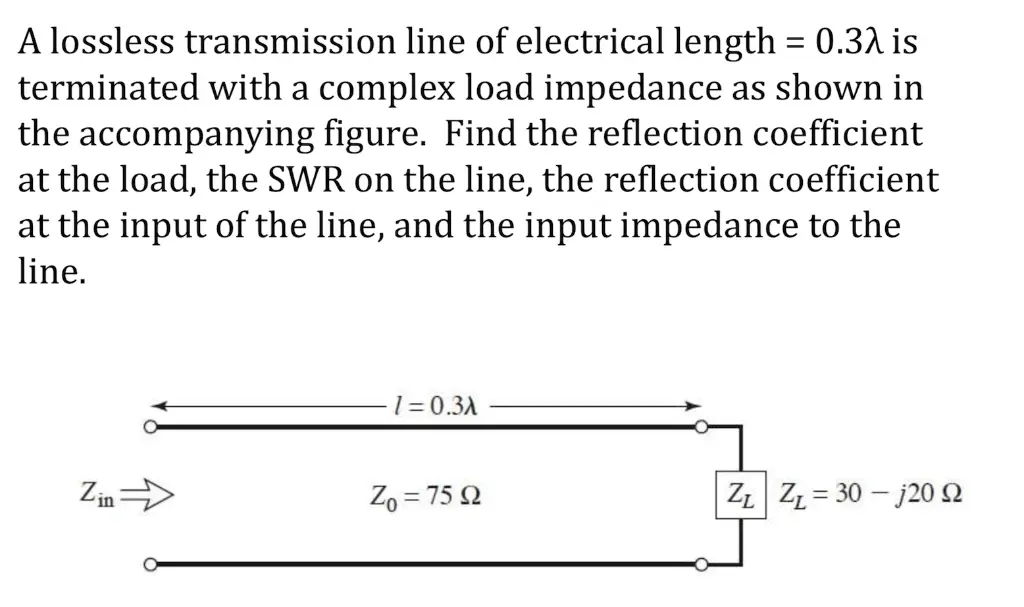

A lossless transmission line of electrical length = 0.3λ is
terminated with a complex load impedance as shown in
the accompanying figure. Find the reflection coefficient
at the load, the SWR on the line, the reflection coefficient
at the input of the line, and the input impedance to the
line.
1=0.3A
Zin-
Zo = 752
=
ZL Z 30-j20
