السؤال

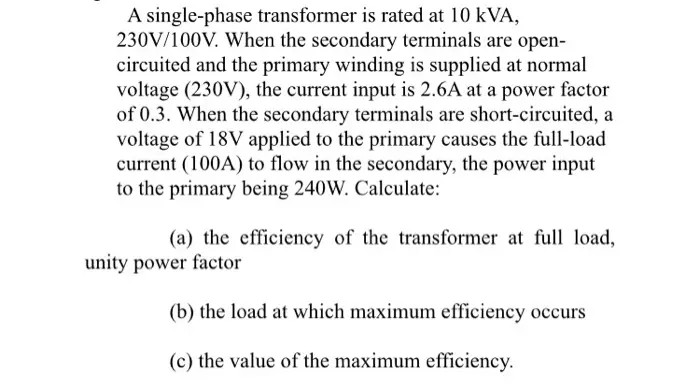

Transcribed Image Text:
A single-phase transformer is rated at 10 kVA,
230V/100V. When the secondary terminals are open-
circuited and the primary winding is supplied at normal
voltage (230V), the current input is 2.6A at a power factor
of 0.3. When the secondary terminals are short-circuited, a
voltage of 18V applied to the primary causes the full-load
current (100A) to flow in the secondary, the power input
to the primary being 240W. Calculate:
(a) the efficiency of the transformer at full load,
unity power factor
(b) the load at which maximum efficiency occurs
(c) the value of the maximum efficiency.
