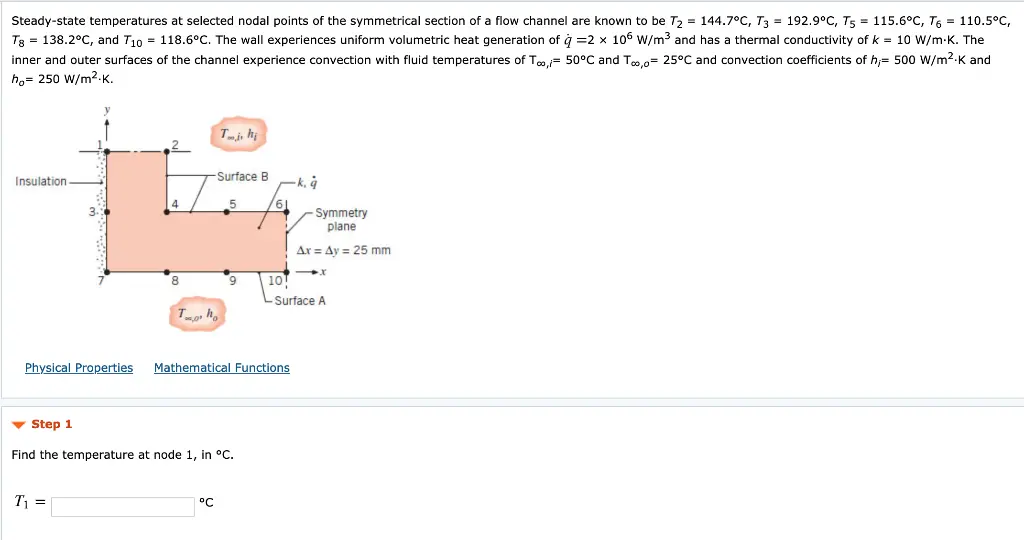

Steady-state temperatures at selected nodal points of the symmetrical section of a flow channel are known to be T2 = 144.7°C, T3 = 192.9°C, T5 = 115.6°C, 76 = 110.5°C, T8 = 138.2°C, and T10 = 118.6°C. The wall experiences uniform volumetric heat generation of q =2 x 106 W/m³ and has a thermal conductivity of k = 10 W/m.K. The inner and outer surfaces of the channel experience convection with fluid temperatures of Too,= 50°C and Too,o= 25°C and convection coefficients of h;= 500 W/m²-K and ho= 250 W/m²K. Thi -Surface B Insulation- -k, q 5 -Symmetry plane Ax = Ay = 25 mm 10 -Surface A To ho Physical Properties Mathematical Functions Step 1 Find the temperature at node 1, in °C. T₁ = °C Step 1 Find the temperature at node 1, in °C. T₁ = the tolerance is +/-5% °C Step 2 Find the temperature at node 4, in °C. T₁ = the tolerance is +/-5% °C Attempts: 0 of 5 used SAVE FOR LATER SUBMIT ANSWER Step 3 Find the temperature at node 7, in °C. T₁ = the tolerance is +/-5% °C Step 4 Find the temperature at node 9, in °C. T9 = °C the tolerance is +/-5% Attempts: 0 of 5 used SAVE FOR LATER SUBMIT ANSWER Step 5 Find the heat loss per unit length by convection from surface A to the outer fluid, in W/m. the tolerance is +/-5% W/m Step 6 Find the heat loss per unit length by convection from the inner fluid to surface B, in W/m. %B = the tolerance is +/-5% W/m Attempts: 0 of 5 used SAVE FOR LATER SUBMIT ANSWER Attempts: 0 of 5 used SAVE FOR LATER SUBMIT ANSWER Step 7 What is the total volumetric heat generation in the whole wall per unit length, in W/m? E' "gen the tolerance is +/-5% W/m
