السؤال
Transcribed Image Text:

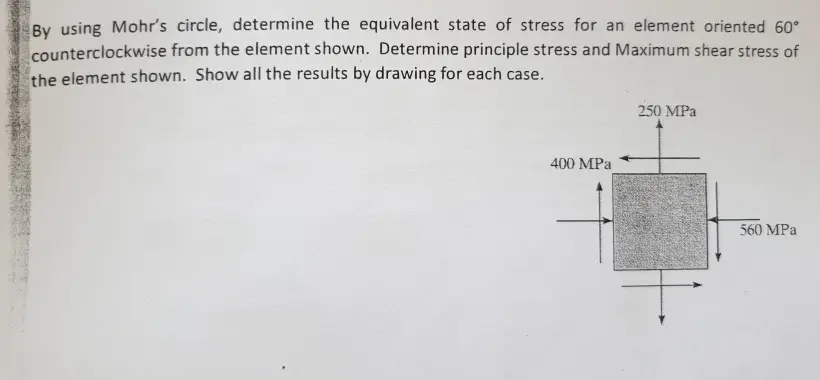

By using Mohr's circle, determine the equivalent state of stress for an element oriented 60°
counterclockwise from the element shown. Determine principle stress and Maximum shear stress of
the element shown. Show all the results by drawing for each case.
400 MPa
250 MPa
560 MPa
