Transcribed Image Text:
+4.8
The angular velocity and angular acceleration
of link 2 of the Scott-Russell linkage in the
posture shown are @2 = 20 rad/scw and a2 =
1493 rad/s² cw, respectively. Determine the
velocity and acceleration of point B and the angular
acceleration of link 3.

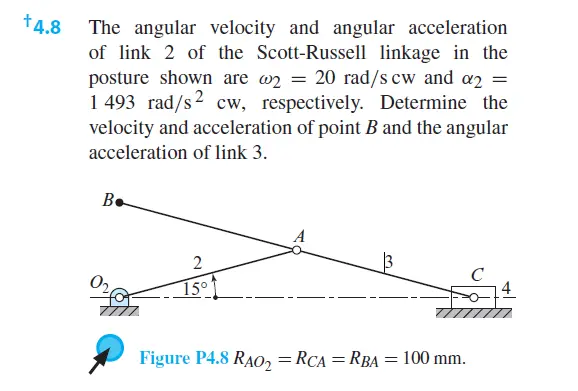

Bo
2
15°
A
Figure P4.8 RAO2 = RCA = RBA = 100 mm.
