السؤال

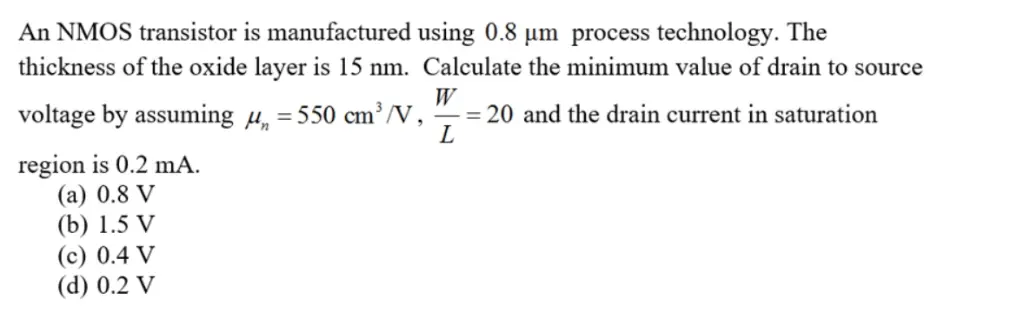

Transcribed Image Text:
An NMOS transistor is manufactured using 0.8 μm process technology. The
thickness of the oxide layer is 15 nm. Calculate the minimum value of drain to source
voltage by assuming μ₁ = 550 cm³/V,
W
-= 20 and the drain current in saturation
L
region is 0.2 mA.
(a) 0.8 V
(b) 1.5 V
(c) 0.4 V
(d) 0.2 V
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
