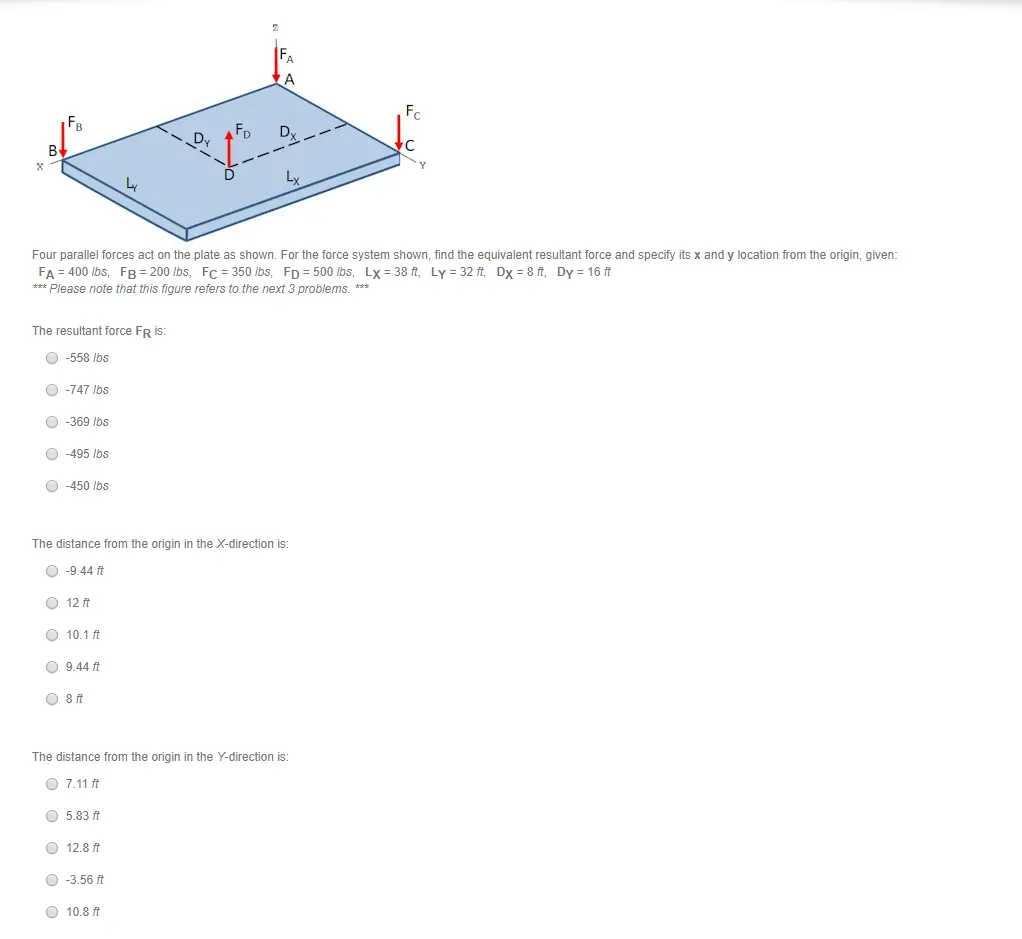

B x B FD 2 FA A Fc C Lx Y Four parallel forces act on the plate as shown. For the force system shown, find the equivalent resultant force and specify its x and y location from the origin, given: FA = 400 lbs, FB = 200 lbs, FC = 350 lbs, FD=500 lbs, Lx = 38 ft, Ly = 32 ft, Dx = 8 ft, Dy = 16 ft *** Please note that this figure refers to the next 3 problems. *** The resultant force FR is: -558 lbs -747 lbs -369 lbs O-495 lbs -450 lbs The distance from the origin in the X-direction is: -9.44 ft 12 ft 10.1 ft 9.44 ft 8 ft The distance from the origin in the Y-direction is: 7.11 ft 5.83 ft 12.8 ft -3.56 ft 10.8 ft
