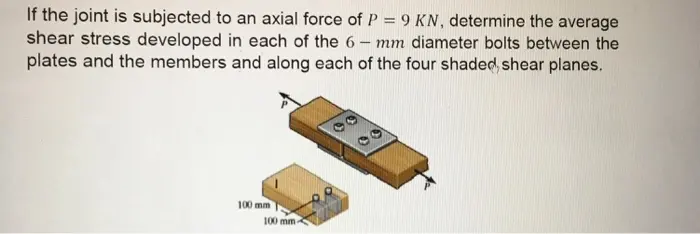

If the joint is subjected to an axial force of P = 9 KN, determine the average shear stress developed in each of the 6-mm diameter bolts between the plates and the members and along each of the four shaded, shear planes. 100 mm 100 mm 09 The beam is supported by a pin at A and a short link BC. Determine the maximum magnitude P of the loads the beam will support if the average shear stress in each pin is not to exceed 80 MPa. All pins are in double shear as shown, and each has a diameter of 18 mm. 30° 0,5m 1.5 m 1.5m 2P 0.5,m The beam is supported by a pin at A and a short link BC. Determine the maximum magnitude P of the loads the beam will support if the average shear stress in each pin is not to exceed 80 MPa. All pins are in double shear as shown, and each has a diameter of 18 mm. 30° 2P 0.5,m 4111 0,5m 1.5 m -1.5m
