السؤال

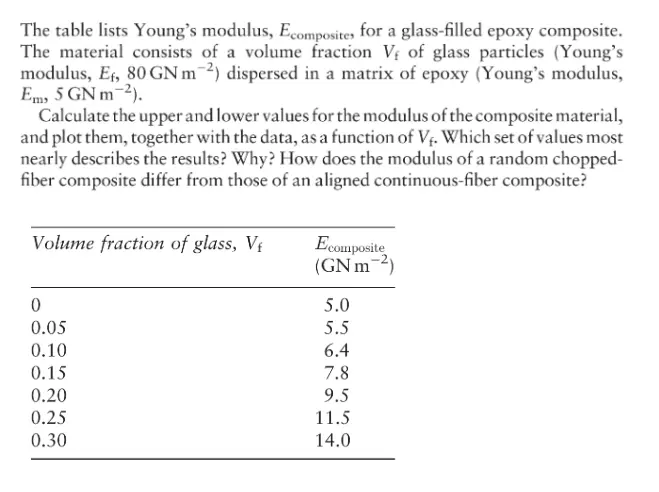

Transcribed Image Text:
The table lists Young's modulus, Ecomposites for a glass-filled epoxy composite.
The material consists of a volume fraction V of glass particles (Young's
modulus, Ef, 80 GN m²) dispersed in a matrix of epoxy (Young's modulus,
Ems 5 GNm-2).
Calculate the upper and lower values for the modulus of the composite material,
and plot them, together with the data, as a function of Vf. Which set of values most
nearly describes the results? Why? How does the modulus of a random chopped-
fiber composite differ from those of an aligned continuous-fiber composite?
Volume fraction of glass, V
Ecomposite
(GN m²)
0
5.0
0.05
5.5
0.10
6.4
0.15
7.8
0.20
9.5
0.25
11.5
0.30
14.0
