السؤال
Transcribed Image Text:

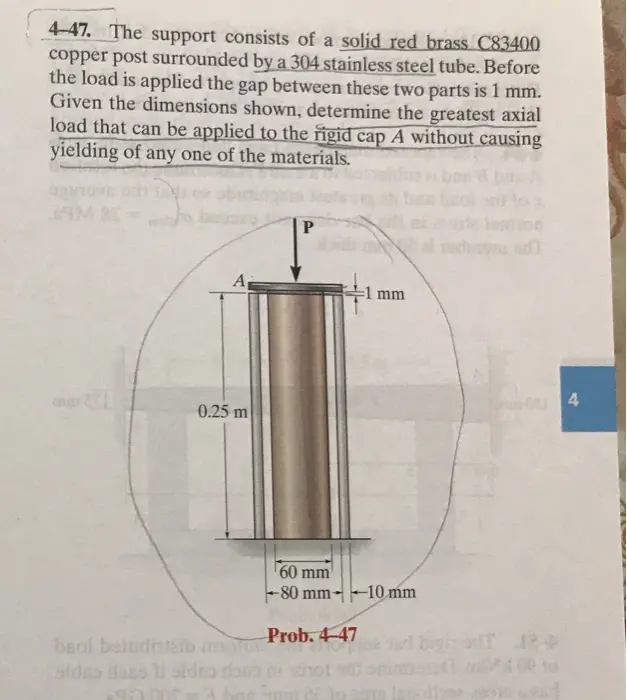

4-47. The support consists of a solid red brass C83400
copper post surrounded by a 304 stainless steel tube. Before
the load is applied the gap between these two parts is 1 mm.
Given the dimensions shown, determine the greatest axial
load that can be applied to the rigid cap A without causing
yielding of any one of the materials.
TM 8
P
A
0.25 m
1 mm
60 mm
-80 mm-10 mm
Prob. 4-47
bsol beludrualb mora
in bigir siff 12-
aldes dass i sidno dose ne sonot s
oni
200 to
900003 from de
wesd
4
