السؤال
Transcribed Image Text:

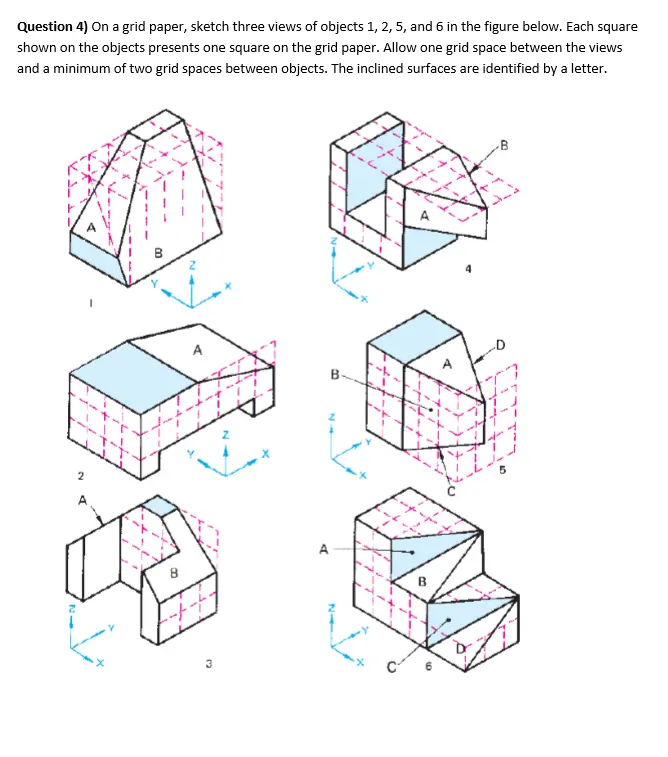

Question 4) On a grid paper, sketch three views of objects 1, 2, 5, and 6 in the figure below. Each square
shown on the objects presents one square on the grid paper. Allow one grid space between the views
and a minimum of two grid spaces between objects. The inclined surfaces are identified by a letter.
2
B
