السؤال
Transcribed Image Text:

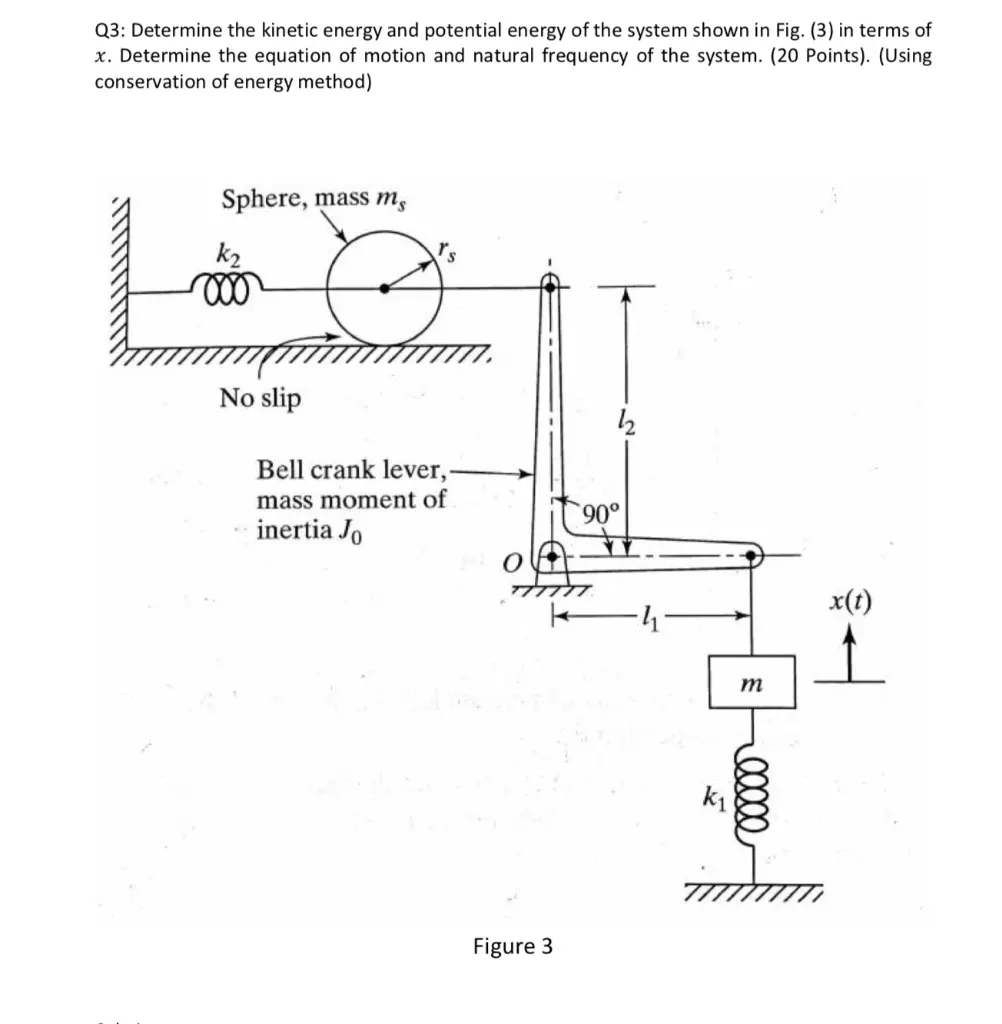

Q3: Determine the kinetic energy and potential energy of the system shown in Fig. (3) in terms of
x. Determine the equation of motion and natural frequency of the system. (20 Points). (Using
conservation of energy method)
Sphere, mass ms
k2
No slip
Bell crank lever,-
mass moment of
inertia Jo
Figure 3
90°
k₁
m
00000
x(t)
