السؤال

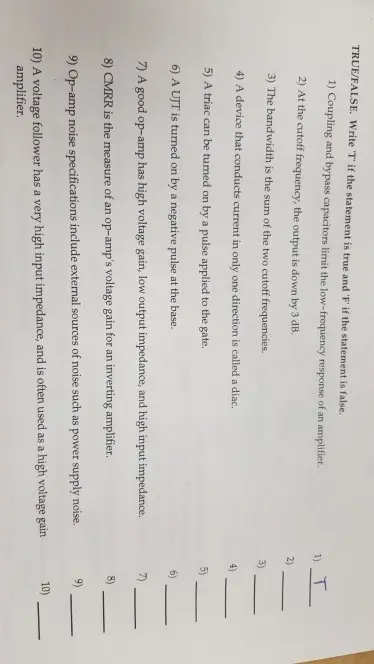

Transcribed Image Text:
TRUE/FALSE. Write 'T' if the statement is true and 'F' if the statement is false.
1) Coupling and bypass capacitors limit the low-frequency response of an amplifier.
2) At the cutoff frequency, the output is down by 3 dB.
3) The bandwidth is the sum of the two cutoff frequencies.
4) A device that conducts current in only one direction is called a diac.
5) A triac can be turned on by a pulse applied to the gate.
6) A UJT is turned on by a negative pulse at the base.
7) A good op-amp has high voltage gain, low output impedance, and high input impedance.
8) CMRR is the measure of an op-amp's voltage gain for an inverting amplifier.
9) Op-amp noise specifications include external sources of noise such as power supply noise.
10) A voltage follower has a very high input impedance, and is often used as a high voltage gain
amplifier.
2)
3)
10)
