السؤال
Transcribed Image Text:
2.33.

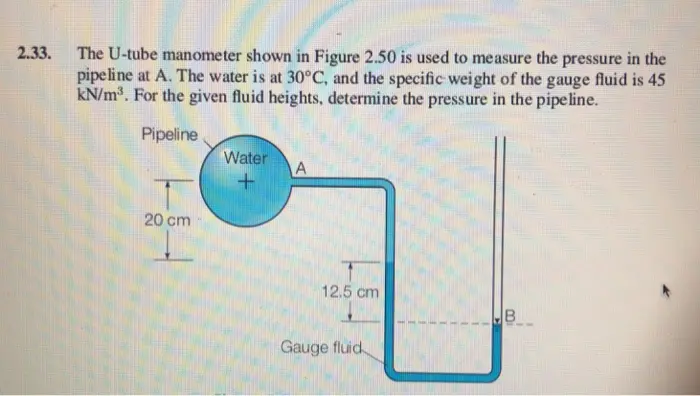

The U-tube manometer shown in Figure 2.50 is used to measure the pressure in the
pipeline at A. The water is at 30°C, and the specific weight of the gauge fluid is 45
kN/m³. For the given fluid heights, determine the pressure in the pipeline.
Pipeline
Water
+
A
20 cm
12.5 cm
B
Gauge fluid
