Transcribed Image Text:

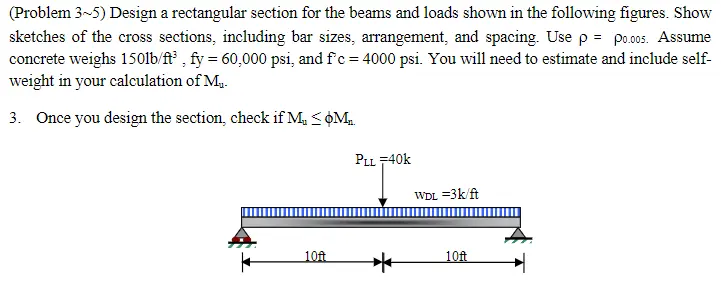

(Problem 3-5) Design a rectangular section for the beams and loads shown in the following figures. Show
sketches of the cross sections, including bar sizes, arrangement, and spacing. Use p = P0.005. Assume
concrete weighs 150lb/ft³, fy = 60,000 psi, and f'c = 4000 psi. You will need to estimate and include self-
weight in your calculation of M₁.
3. Once you design the section, check if M, <M,
PLL 40k
WDL =3k/ft
10ft
*
10ft
